How to encrypt calls with RTP encryption?
 |
Download: | RTP_Encryption.zip |
This article is a brief introduction about RTP call encryption in relation with Ozeki VoIP SIP SDK. After reading through this page you will be fully familiar with all the essential terms concerning RTP encryption and what you will need for creating your own solution using Ozeki VoIP SIP SDK.

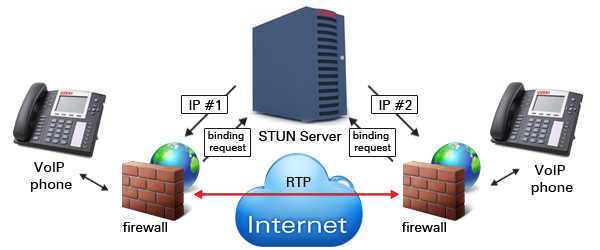

What is RTP encryption?
The Secure Real-time Transport Protocol (or SRTP) defines a
profile of RTP (Real-time Transport Protocol), intended to
provide encryption, message authentication and integrity, and
replay protection to the RTP data in both unicast and multicast applications.
For encryption and decryption of the data flow (and hence for providing confidentiality
of the data flow), SRTP utilizes AES (Advanced Encryption Standard) as the default cipher.
AES is a symmetric-key algorithm, meaning the same key is used for both encrypting and decrypting the data.
Transport Layer Security (TLS) and its predecessor, Secure Sockets
Layer (SSL), are cryptographic protocols that provide communication
security over the Internet. TLS and SSL encrypt the segments of network
connections above the Transport Layer, using asymmetric cryptography for key
exchange, symmetric encryption for privacy, and message authentication codes for message integrity.
Please note that, the security keys will be sent via SIP messages, so it's highly recommended
to encrypt the SIP messages as well, when you are using RTP encryption.
How to implement RTP encryption using C#?
Ozeki VoIP SIP SDK supports SRTP encryption for the phone line objects. You can set the SRTPMode property of the phone line. The SRTPMode is an enum defined in the Ozeki.Network namespace. It defines three SRTP modes: None, Prefer and Force.
Ozeki VoIP SIP SDK provides three types of SRTP modes:
- SRTPMode.None: The None SRTPMode is the default value for the encryption. If you do not set the SRTP mode in your program, there will be no RTP encryption for the calls.
- SRTPMode.Prefer: If you set the SRTP mode to Prefer, the system will try to encrypt the RTP connection, but there will be no encryption if one of the clients does not support it.
- SRTPMode.Force: If the SRTP mode is set to Force, the RTP connection will be encrypted no matter what.
When using UDP for message transmission, you need to select some of the codecs to disable as the maximum length of 1500 bytes of the UDP packet will be exceeded if all the codecs are enabled when using SRTP mode.
The RTP encryption can be used in the case of an Ozeki VoIP SIP SDK supported softphone application by setting it's phone line object's SRTPMode property with the preferred SRTP mode, as the following example introduces.
RTP encryption in C#
using System;
using Ozeki.VoIP;
namespace RTP_Encryption
{
class Program
{
static ISoftPhone softphone; // softphone object
static IPhoneLine phoneLine; // phoneline object
private static void Main(string[] args)
{
// Create a softphone object with RTP port range 5000-10000
softphone = SoftPhoneFactory.CreateSoftPhone(5000, 10000);
// SIP account registration data, (supplied by your VoIP service provider)
var registrationRequired = true;
var userName = "sipusername";
var displayName = "sipdisplayname";
var authenticationId = "authenticationid";
var registerPassword = "Password";
var domainHost = "pbxip.voipprovider.com";
var domainPort = 5060;
var account = new SIPAccount(registrationRequired, displayName, userName, authenticationId, registerPassword, domainHost, domainPort);
// Send SIP regitration request
RegisterAccount(account);
// Prevents the termination of the application
Console.ReadLine();
}
static void RegisterAccount(SIPAccount account)
{
try
{
phoneLine = softphone.CreatePhoneLine(account);
phoneLine.Config.SRTPMode = SRTPMode.Force;
phoneLine.RegistrationStateChanged += sipAccount_RegStateChanged;
softphone.RegisterPhoneLine(phoneLine);
}
catch (Exception ex)
{
Console.WriteLine("Error during SIP registration: " + ex);
}
}
static void sipAccount_RegStateChanged(object sender, RegistrationStateChangedArgs e)
{
if (e.State == RegState.Error || e.State == RegState.NotRegistered)
Console.WriteLine("Registration failed!");
if (e.State == RegState.RegistrationSucceeded)
Console.WriteLine("Registration succeeded - Online!");
}
}
}
Wireshark communication
Capture the traffic with wireshark to see what is going on in the background.
Encrypted PDU
The captured RTP packet contains an SRTP-encrypted G.722 payload, confirming that the voice data is protected during transmission. The visible RTP header remains readable, but the media payload cannot be interpreted without the negotiated SRTP key. The authentication tag ensures integrity and replay protection.
Real-Time Transport Protocol
Frame 496: Packet, 214 bytes on wire (1712 bits), 214 bytes captured (1712 bits) on interface \Device\NPF_Loopback, id 0
Null/Loopback
Internet Protocol Version 4, Src: 192.168.0.126, Dst: 192.168.0.126
User Datagram Protocol, Src Port: 20004, Dst Port: 20006
Real-Time Transport Protocol
[Stream setup by SDP (frame 183)]
10.. .... = Version: RFC 1889 Version (2)
..0. .... = Padding: False
...0 .... = Extension: False
.... 0000 = Contributing source identifiers count: 0
0... .... = Marker: False
Payload type: ITU-T G.722 (9)
Sequence number: 7013
[Extended sequence number: 72549]
Timestamp: 27899125
[Extended timestamp: 4322866421]
Synchronization Source identifier: 0x4fcc6caa (1338797226)
SRTP Encrypted Payload […]: cda54e6a2d1b093a3d76bfacacf8d3b3ba72239f3700385a13f970d6e009ef6b93815533055f40ce686ddf86c28
d55b04f56b69c7d59911e8d38c6d8ffd3feaaee804f4a184026404c6d26134d42f94506f471ad02707aafd52eb441124ce008cfd96d0cdbf4d4b34
SRTP Auth Tag: 78de478649b9f254c636
