How to setup Ozeki VoIP SIP SDK with Asterisk

This guide shows how you can connect Ozeki VoIP SIP SDK to your Asterisk PBX. This solution gives you a brief explanation about how you can configure Ozeki VoIP SIP SDK to start building your own application.

Ozeki VoIP SIP SDK uses Voice over IP to establish phone calls. Using VoIP technology is less expensive than traditional phone services. With Ozeki VoIP SIP SDK you can view your registered phone line and your active phone calls. You can establish calls using the Softphone of the Demo Application. You can also select the codec to be used during the phone call.

This configuration guide demonstrates how you can connect Ozeki VoIP SIP SDK to your Asterisk PBX.

System architecture

If you follow the configuration guide, you will have a telephone system that works as follows:
First, create an extension in your Asterisk PBX. Ozeki VoIP SIP SDK will connect using this created extension. Once Ozeki VoIP SIP SDK Studio is connected, you can start your calls. The destination phone could be a VoIP phone, a land line phone or a mobile phone. You can see this process in Figure 1.

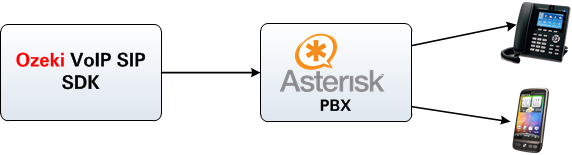

calling contacts via asterisk
Figure 1 - Calling contacts via Asterisk

  1. Ozeki VoIP SIP SDK registers to Asterisk
  2. The call will be forwarded to Asterisk using the created extension
  3. The destination phone will be ringing
  4. You can start talking using the SDK

Configuration steps

Before you start to configure this solution it is assumed that you have already installed your Asterisk PBX and downloaded Ozeki VoIP SIP SDK installer from the download page.

Step 1.) Configure Asterisk

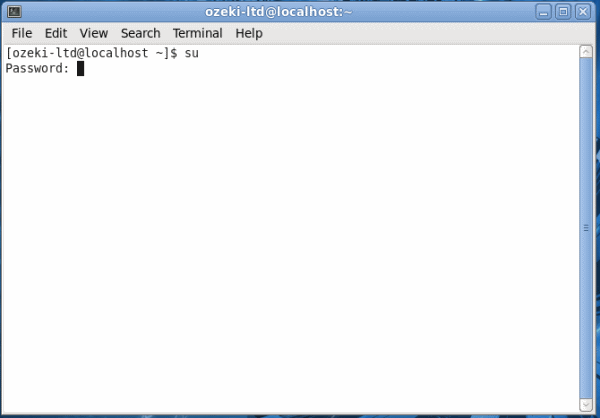

Start a terminal at the Linux server and login as superuser. For this, type su and login with the administrator password (Figure 2).


login as a superuser
Figure 2 - Login as superuser

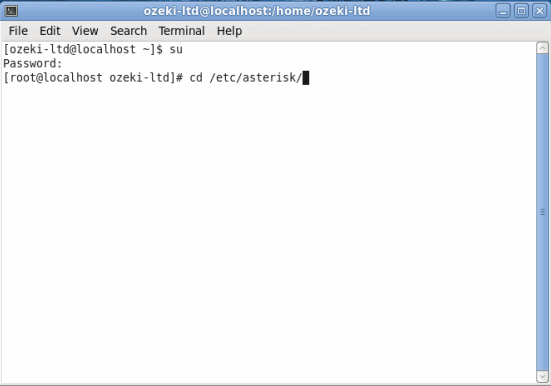

Then navigate to the config directory of Asterisk (Figure 3). In this example it is located in the etc directory.

    cd /etc/asterisk/

navigate to the config directory
Figure 3 - Navigate to the config directory

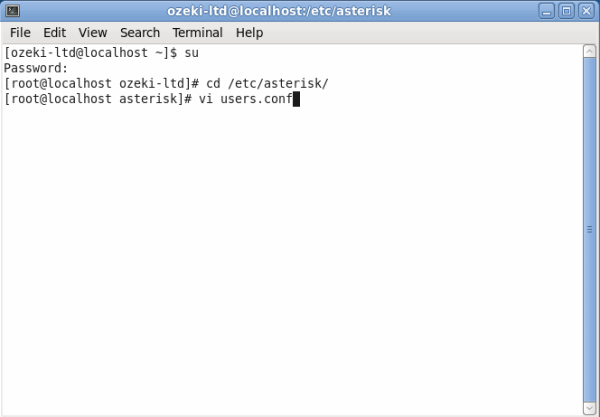

The users.conf contains the settings that clients can use to register to the PBX. Open this file with a plain text editor. In this example I use a built-in text editor: vi (Figure 4).

 vi users.conf

edit the user.conf file
Figure 4 - Edit users.conf file

In this example I will register two users. User 100 for a landline phone and user 101 for Ozeki VoIP SIP SDK (Figure 5).

For this, I insert the following lines into the config file:

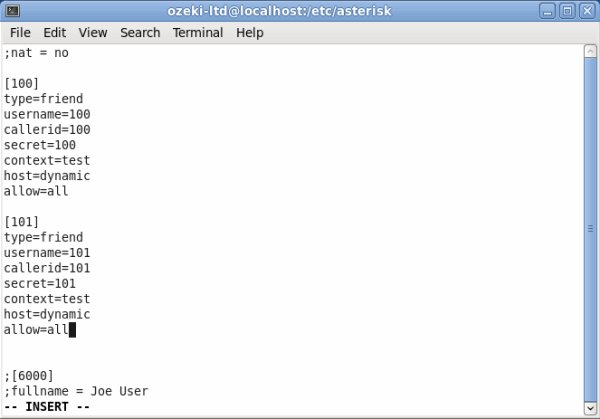

register two user
Figure 5 - Register two users

Finally, quit insert mode by pressing Escape button and type: wq (Figure 6).

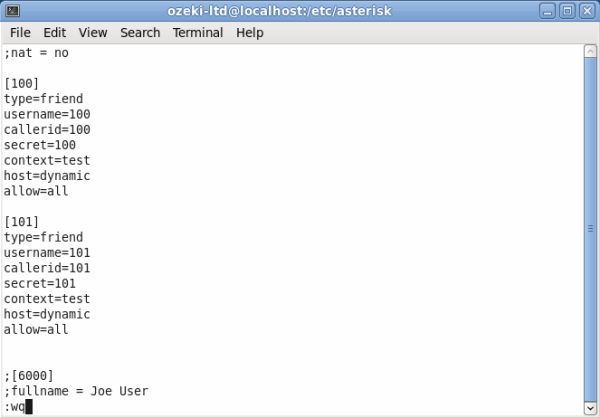

save and exit
Figure 6 - Save and exit

Next open extensions.conf file for editing (Figure 7).

         vi extensions.conf

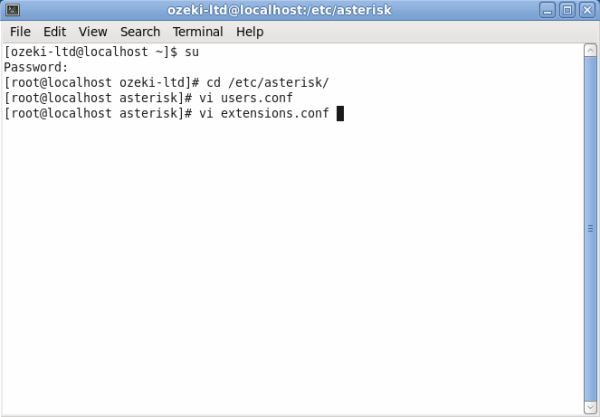

open extensions.conf file
Figure 7 - Open extensions.conf file

In extensions.conf file you can find the user's dial plans. Now set the dial plan for the created user accounts (Figure 8).

In this example I will use the following dial plan:

exten => 100,1,Dial(SIP/100)
exten => 101,1,Dial(SIP/101)

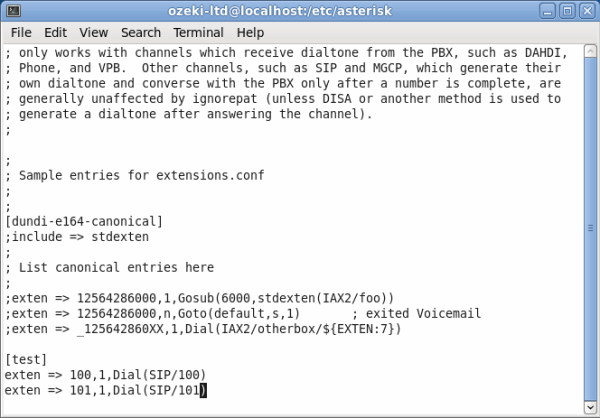

dial plans
Figure 8 - Dial plans

Insert the dial plan, save the file and exit (Figure 9).

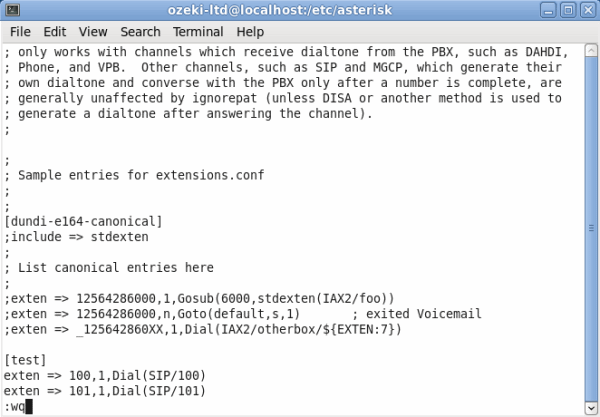

save dial plan
Figure 9 - Save Dial plan

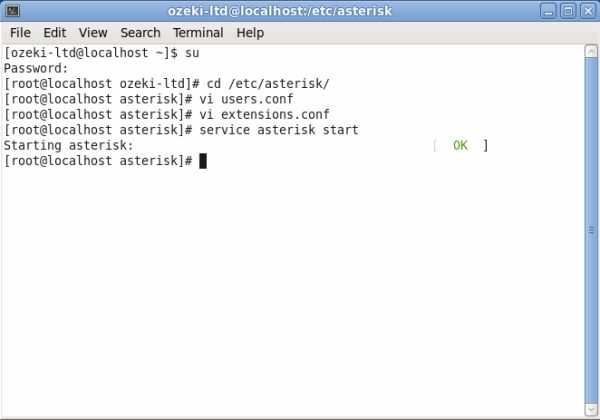

Start asterisk service by typing: service asterisk start. The service will start with the new configuration (Figure 10).

         service asterisk start

start asterisk service
Figure 10 - Start asterisk service

Now the configuration of Asterisk is done, and you can configure Ozeki VoIP SIP SDK.

Step 2.) Configure Ozeki VoIP SIP SDK

In this example, I have already downloaded the Ozeki VoIP SIP SDK installer into my PC from the download page. Open the downloaded package and execute the installer. Accept the License Agreement and click on Next (Figure 11).

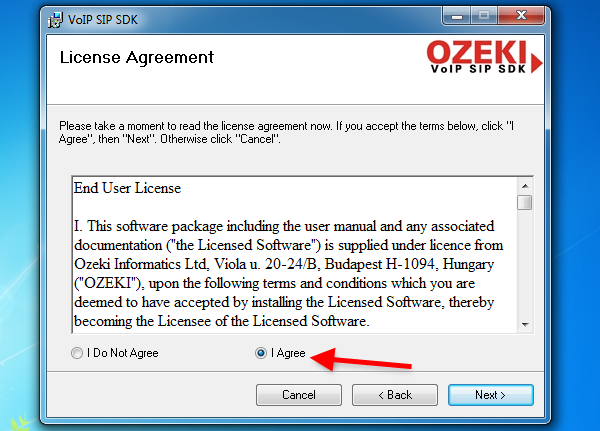

install voip sip sdk
Figure 11 - Install VoIP SIP SDK

Wait until your Ozeki VoIP SIP SDK is installed (Figure 12).

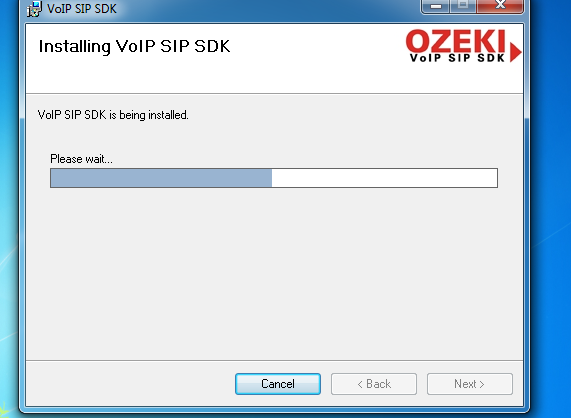

installing voip sip sdk
Figure 12 - Installing VoIP SIP SDK

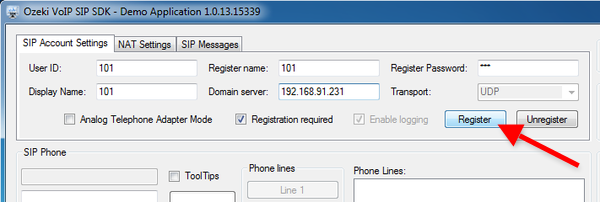

After installation, Ozeki VoIP SIP SDK Demo Application will be started automatically. To provide your Asterisk extension details in the Demo Application, fill the SIP Account Settings fields with the created extension data and click on Register. (Figure 13).

register to asterisk
Figure 13 - Register to Asterisk

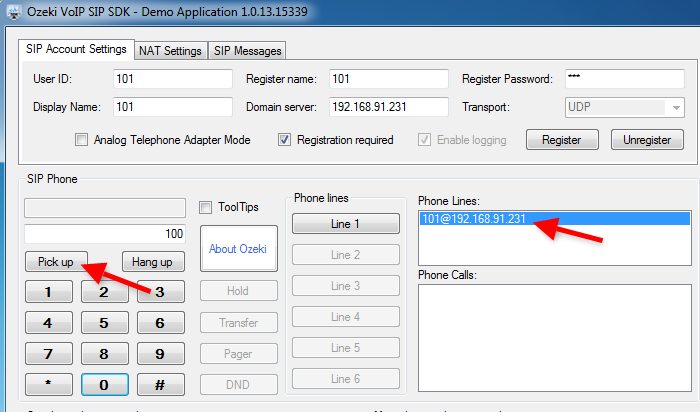

After registration, the registered phone line will be visible in the Phone Lines section. Enter a number using the keypad and click on Pick up (Figure 14).

dial a phone
Figure 14 - Dial a phone

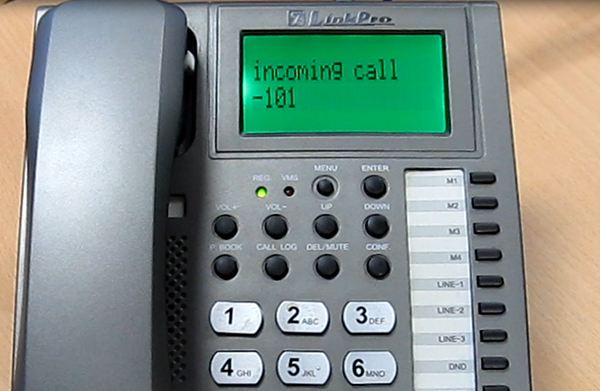

On Figure 15 you can see the Demo Application is calling the destination phone.

incoming call from the demo application
Figure 15 - Incoming call from the Demo Application

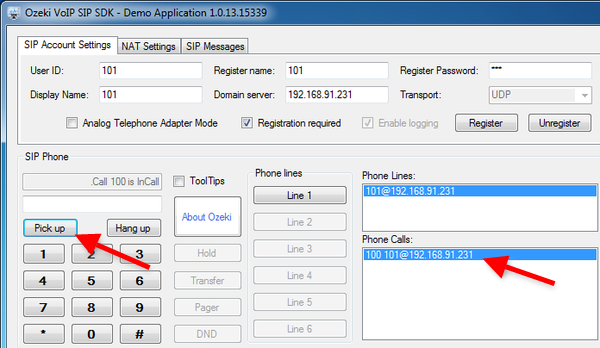

The active phone call is visible in the Phone Calls section (Figure 16).

active phone call
Figure 16 - Active phone call


Now the configuration is completed and the testing is successful. You are ready to start to build your application with VoIP support.
