How to setup Ozeki VoIP SIP SDK with Axvoice

This guide provides you step by step instructions on how to setup Ozeki VoIP SIP SDK with Axvoice. The configuration process is easy and simple. Follow the steps below to get a stable VoIP system.

In order to setup your system, first you need to download and install Ozeki VoIP SIP SDK. You also need to create a Axvoice account if don't have one. After these basic steps please follow the configuration steps below.

Download VoIP SIP SDK

The first thing to do if you wish to work with Ozeki VoIP SIP SDK, is to download and install it on your Windows computer. Once installed, you can use Visual Studio to add Voice and Video call capabilities to your project.

Link: Download Voip SIP SDK for Windows

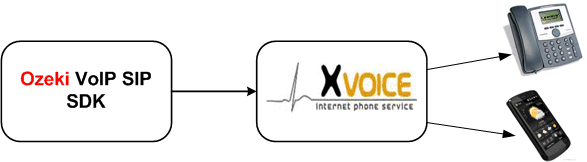

Figure 1 shows the cooperation between Ozeki VoIP SIP SDK and Axvoice. After you configured the connection, your system is ready to start your calls and build your own application with VoIP support via Axvoice. The call can be made to a mobile phone or a landline phone.

connection with axvoice
Figure 1 - Connection with Axvoice

  1. Register a Axvoice account
  2. Ozeki VoIP SIP SDK will register to your Axvoice account.
  3. Start calling phone numbers.
  4. Ozeki VoIP SIP SDK will call your contacts via your Axvoice account.

Step 1.) Configure Axvoice

Before you begin to follow the configuration steps of this guide, it is assumed that you already have a registered account at http://www.axvoice.com/.

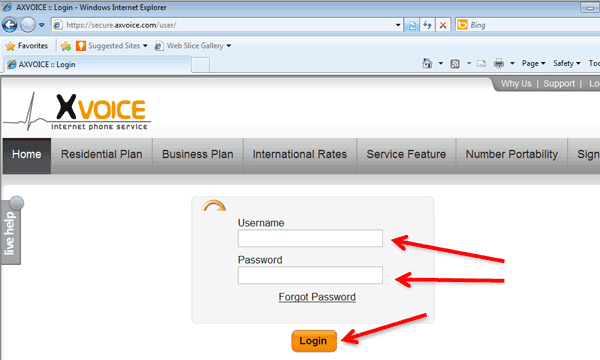

Launch your browser and navigate to the login page of Axvoice. Login with your username and password (Figure 2).

login to your account
Figure 2 - Login to your account

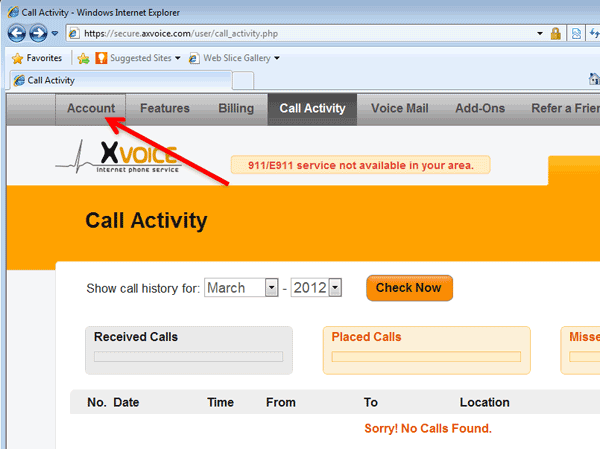

Click on Account menu to see your Axvoice phone number (Figure 3).

click on account menu
Figure 3 - Click on Account menu

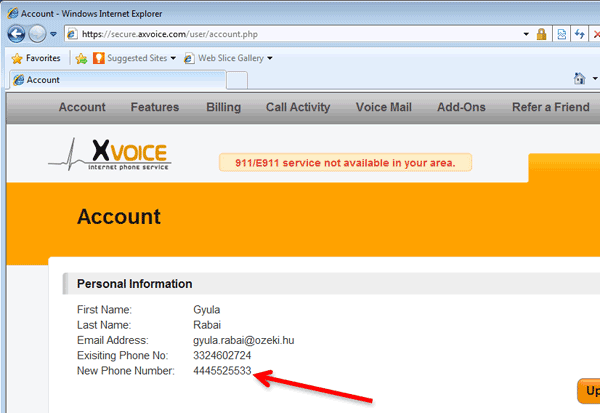

At the account settings pane you can see your Axvoice phone number. (Figure 4) Ozeki VoIP SIP SDK will use this number as "Display name".

phone number
Figure 4 - Phone number

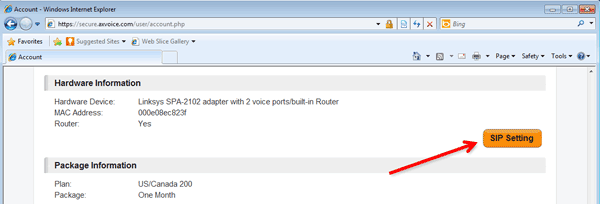

You can see your SIP settings if you click on "SIP settings" on the bottom of this page. (Figure 5).

click on sip settings button
Figure 5 - Click on SIP settings button

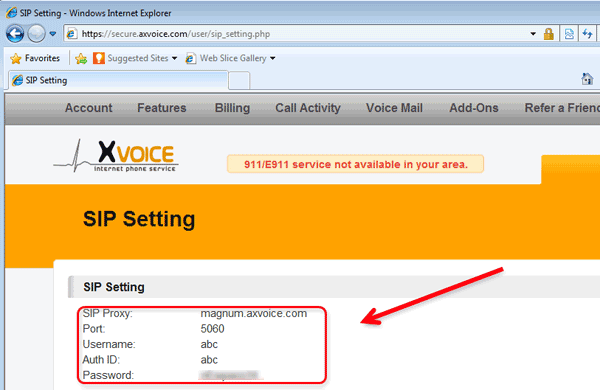

At the "SIP setting page" you can see your Axvoice SIP settings (Figure 6). Ozeki VoIP SIP SDK will use this settings to register to the Axvoice server.

Figure 6 - SIP settings

Step 2.) Configure Ozeki VoIP SIP SDK

Before you configure Ozeki VoIP SIP SDK it is assumed that you have already downloaded Ozeki VoIP SIP SDK from the download page and installed it into your computer.

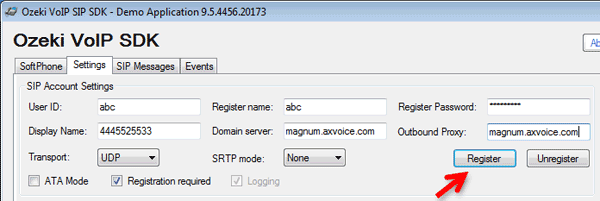

By installing Ozeki VoIP SIP SDK, the Demo Application will also be installed into your computer. Open the Demo Application and provide the Axvoice extension details into the SIP Account Settings tab. Once it is done, click on Register (Figure 7).

provide axvoice settings
Figure 7 - Provide Axvoice settings

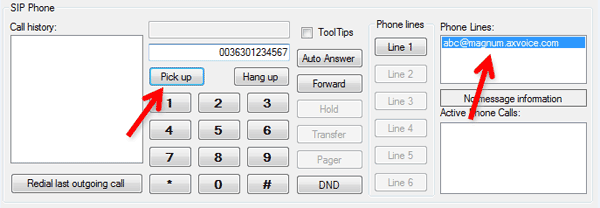

Now Ozeki VoIP SIP SDK will register to Axvoice. You can see the registered phone line at the Phone Lines section of the Demo Application GUI. Dial a phone number using the built-in keyboard of the Demo Application, and click on Pick up (Figure 8).

dial a number
Figure 8 - Dial a number

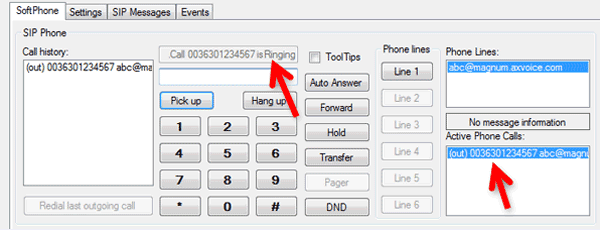

At the Demo Application you can see the call state is changed to Ringing. Also, you can see the outgoing phone call at the Phone calls section (Figure 9).

dialed number is ringin
Figure 9 - Dialed number is Ringing

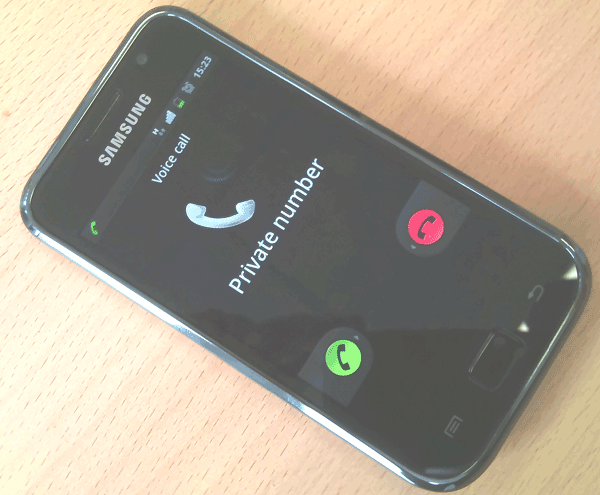

You can see that there is an incoming call at the destination phone from Ozeki VoIP SIP SDK via Axvoice (Figure 10).

incoming call from ozeki voip sip sdk
Figure 10 - Incoming call from Ozeki VoIP SIP SDK

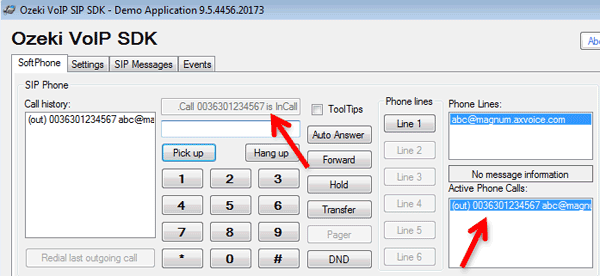

After the destination phone is picked up, the call state will be changed to InCall. The phone calls section indicates that this is an outgoing call from Ozeki VoIP SIP SDK.

call state is incall
Figure 11 - Call state is InCall.

Conclusion

If you followed the steps of this guide, you have a working system with Ozeki VoIP SIP SDK which is connected to Axvoice. Now you can build your own application with VoIP support.

If you have any questions, do not hesitate to contact us at info@voip-sip-sdk.com
