This example demonstrates how to get microphone using c#, how to connect media handlers and attach microphone to call, how to send microphone audio stream into a call in c#, using Ozeki VoIP SIP SDK.
To fully understand this example, you might have to study the How to register to a SIP PBX chapter and the How to ring a SIP extension chapter first.
To use this example, you need to have Ozeki VoIP SIP SDK installed, and a reference to ozeki.dll should be added to your visual studio project.

What is microphone used for during a SIP voice call? How does it work?

A microphone is an acoustic-to-electric transducer or sensor that converts sound in air into an electrical signal. Microphones are used in many applications such as telephones, hearing aids, live and recorded audio engineering, voice recording, speech recognition, VoIP and much more.

Softphones are using microphones as audio sender devices for the purpose to capture microphone input and send the microphone audio stream to the other party (exspecially, to the other party's receiver device). To be able to do this, an analog-to-digital converter device converts the continuous physical quantity to digital numbers, that represent the quantity's amplitude, and can be processed by the c# softphone.

Pulse-code modulation (PCM) is a method, used to digitally represent sampled analog signals. In this example, PCM means the uncompressed form of digital audio data. This example is using the G.711 waveform codec, which is an ITU-T standard for audio companding, and it is primarily used in telephony and to communicate over IP networks. It is a lossless, encoded data (to about 50%), which has got 64 kbit/s transfer rate.

The Real-time Transport Protocol (RTP) defines a standardized packet format for delivering audio and video over IP networks. RTP is used extensively in communication and entertainment systems that involve streaming media, such as telephony, video teleconference applications, television services and web-based push-to-talk features.
RTP is designed for end-to-end, real-time transfer of stream data, and is able to transfer the data to multiple destinations. The RTP package construction:

You can learn more about RTP from the How to work with RTP in VoIP SIP calls article.

How to access microphone and send audio stream using c#?

Ozeki VoIP SIP SDK provides c# Microphone class for the purpose to create microphone object, which is able to handle the microphone amplitude, microphone input level, microphone volume etc. With this c# virtual microphone, users are able to access the microphone and get the microphone stream, can control microphone values, and also able to attach it to a call with the correct media sender object, to send the captured microphone input to the other party.

Connect microphone to call example in C#

using System;
using Ozeki.Media;
using Ozeki.VoIP;

namespace SDK_Microphone
{
    class Program
    {
        static ISoftPhone softphone;   // softphone object
        static IPhoneLine phoneLine;   // phoneline object
        static IPhoneCall call;
        static Microphone microphone;
        static MediaConnector connector;
        static PhoneCallAudioSender mediaSender;

        private static void Main(string[] args)
        {
            // Create a softphone object with RTP port range 5000-10000
            softphone = SoftPhoneFactory.CreateSoftPhone(5000, 10000);

            // SIP account registration data, (supplied by your VoIP service provider)
            var registrationRequired = true;
            var userName = "858";
            var displayName = "858";
            var authenticationId = "858";
            var registerPassword = "858";
            var domainHost = "192.168.115.100";
            var domainPort = 5060;

            var account = new SIPAccount(registrationRequired, displayName, userName, authenticationId, registerPassword, domainHost, domainPort);

            // Send SIP regitration request
            RegisterAccount(account);

            microphone = Microphone.GetDefaultDevice();
            mediaSender = new PhoneCallAudioSender();
            connector = new MediaConnector();

            // Prevents the termination of the application
            Console.ReadLine();
        }

        static void RegisterAccount(SIPAccount account)
        {
            try
            {
                phoneLine = softphone.CreatePhoneLine(account);
                phoneLine.RegistrationStateChanged += line_RegStateChanged;
                softphone.RegisterPhoneLine(phoneLine);
            }
            catch (Exception ex)
            {
                Console.WriteLine("Error during SIP registration: " + ex);
            }
        }

        static void line_RegStateChanged(object sender, RegistrationStateChangedArgs e)
        {
            if (e.State == RegState.Error || e.State == RegState.NotRegistered)
                Console.WriteLine("Registration failed!");

            if (e.State == RegState.RegistrationSucceeded)
            {
                Console.WriteLine("Registration succeeded - Online!");
                CreateCall();
            }
        }

        static void CreateCall()
        {
            var numberToDial = "853";

            call = softphone.CreateCallObject(phoneLine, numberToDial);
            call.CallStateChanged += call_CallStateChanged;
            call.Start();
        }

        static void SetupMicrophone()
        {
            connector.Connect(microphone, mediaSender);
            mediaSender.AttachToCall(call);

            microphone.Start();

            Console.WriteLine("The microphone is functioning.");
        }

        static void call_CallStateChanged(object sender, CallStateChangedArgs e)
        {
            Console.WriteLine("Call state: {0}.", e.State);

            if (e.State == CallState.Answered)
                SetupMicrophone();
        }
    }
}

Training guides, simple examples

If you would like to visit the detailed developer documentations, you can learn much more from the Ozeki VoIP SIP SDK Training chapter.

Communication through the network

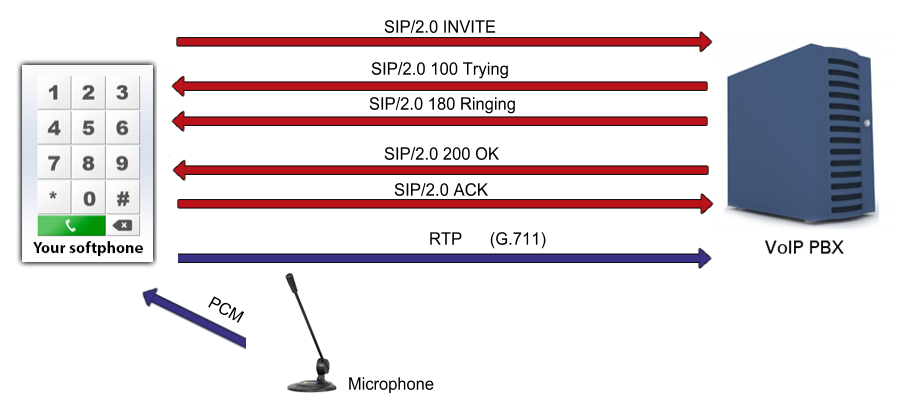

When the call has been accepted by the called party, the softphone is ready to send the voice stream to the destination through the UDP network as RTP packages. This example also writes to the console that the microphone has been successfully started.

Step 1: the application notifies the user about the success of starting the microphone

The microphone is functioning.

Step 2: RTP packages are being sent to the destination (a sample package)

[Stream setup by SDP (frame 28)]
10.. .... = Version: RFC 1889 Version (2)
..0. .... = Padding: False
...0 .... = Extension: False
.... 0000 = Contributing source identifiers count: 0
1... .... = Marker: True
Payload type: ITU-T G.711 PCMU (0)
Sequence number: 7133
[Extended sequence number: 72669]
Timestamp: 85000
Synchronization Source identifier: 0x712f7356 (1898935126)
Payload: d55555545657545756565455575051575650515557515050...
